Prior to configuring this setup, you will need to flash your router with the latest OpenVPN-capable build of DD-WRT. You can find your router and appropriate build by searching the DD-WRT database: http://www.dd-wrt.com/site/support/router-database
We do not offer assistance with flashing routers. If you need help, please consult the DD-WRT forums or DD-WRT wiki page of your make and model of router. Forums: http://www.dd-wrt.com/phpBB2/
Please note: We offer limited support for this configuration due to many variables that can cause connection or performance issues. This firmware is open-source with many versions and a growing list of supported hardware. We cannot guarantee VyprVPN's performance or functionality on your router.
These instructions utilize OpenVPN 256-bit encryption.
Bold items are things you will click or edit.
1. Connect to your router via Ethernet cable and navigate to the firmware. To do this, open your browser and visit http://192.168.1.1/
2. Go to the Setup tab and click the Basic Setup sub-tab.

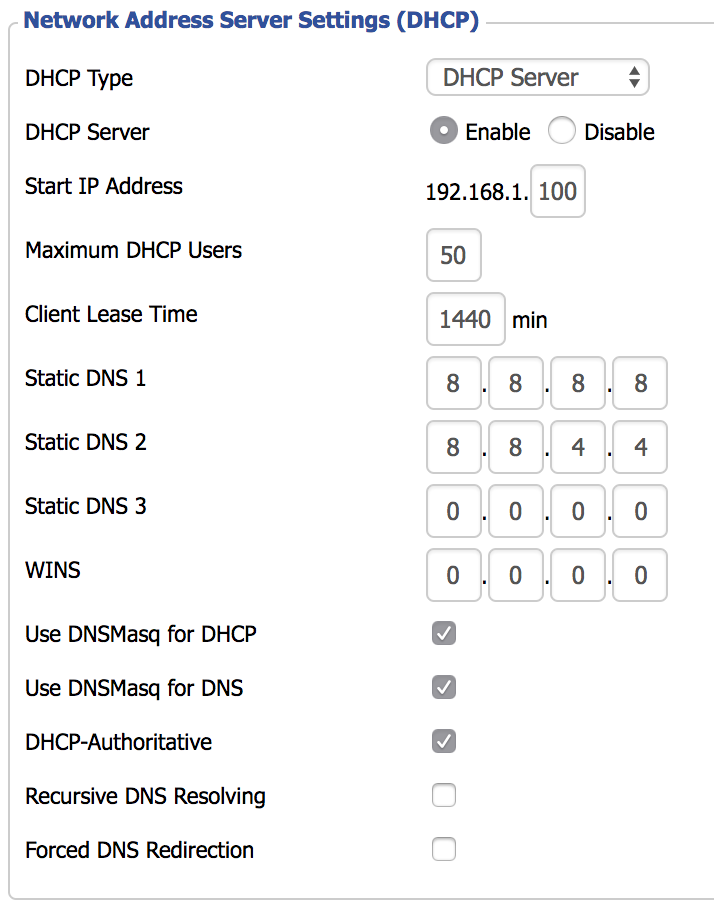

3. In the Network Address Server Settings (DHCP) section, fill in Static DNS 1 and Static DNS 2 with your desired DNS servers. Please note: VyprDNS is not yet available for this configuration.
Suggested DNS server addresses:
Google DNS: 8.8.8.8 and 8.8.4.4 OpenDNS: 208.67.222.222 and 208.67.220.220
4. Click the Save button at the bottom of the page.
5. Go to the Services tab, then the VPN sub-tab.
6. Enable OpenVPN Client.
7. Configure the fields and options per the settings below:
Server IP/name: Enter the desired VPN server address in the Internet address field. View the server addresses here. [Server addresses will need to use the following syntax: xxx.vyprvpn.com]
Port: 443
Tunnel Device: TUN
Tunnel Protocol: UDP
Encryption Cipher: AES-256 CBC
Hash Algorithm: SHA256
User Pass Authentication: Enabled
Username: Your VyprVPN email address
Password: Your VyprVPN password
Advanced Options: Enable
TLS Cypher: None
LZO Compression: Yes
NAT: Enable
Firewall Protection: Enable
Leave all other fields on their default settings.

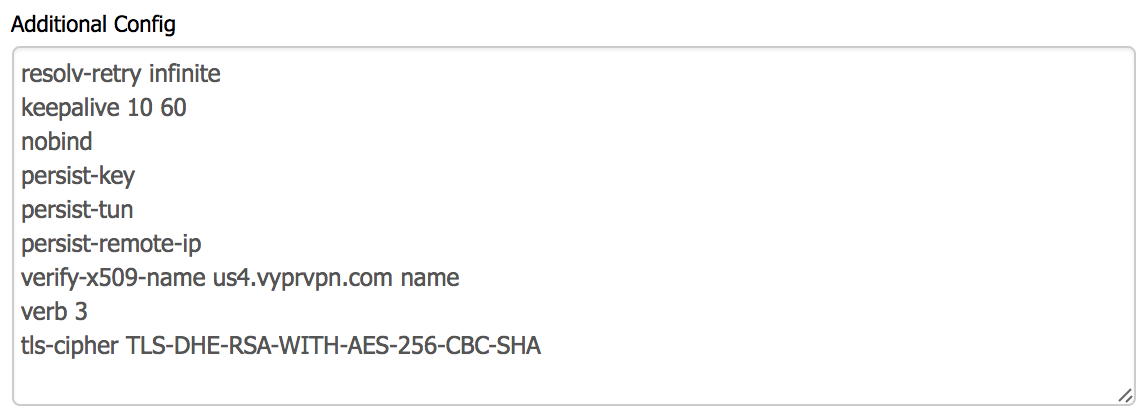

8. In the Additional Config box, paste the following:
resolv-retry infinite keepalive 10 60 nobind persist-key persist-tun persist-remote-ip verify-x509-name us4.vyprvpn.com name verb 3
tls-cipher TLS-DHE-RSA-WITH-AES-256-CBC-SHA
NOTE: For the “verify-x509-name” line, change the example server hostname of us4.vyprvpn.com to the desired server location hostname. It needs to match what you entered in the Server IP/name field for the client options.
9. In the CA Cert box, paste the text from this file: CA Cert (You will need to open the .crt with a text editor to view it's contents or copy the entire contents from the textbox below)
-----BEGIN CERTIFICATE-----
MIIGDjCCA/agAwIBAgIJAL2ON5xbane/MA0GCSqGSIb3DQEBDQUAMIGTMQswCQYD
VQQGEwJDSDEQMA4GA1UECAwHTHVjZXJuZTEPMA0GA1UEBwwGTWVnZ2VuMRkwFwYD
VQQKDBBHb2xkZW4gRnJvZyBHbWJIMSEwHwYDVQQDDBhHb2xkZW4gRnJvZyBHbWJI
IFJvb3QgQ0ExIzAhBgkqhkiG9w0BCQEWFGFkbWluQGdvbGRlbmZyb2cuY29tMB4X
DTE5MTAxNzIwMTQxMFoXDTM5MTAxMjIwMTQxMFowgZMxCzAJBgNVBAYTAkNIMRAw
DgYDVQQIDAdMdWNlcm5lMQ8wDQYDVQQHDAZNZWdnZW4xGTAXBgNVBAoMEEdvbGRl
biBGcm9nIEdtYkgxITAfBgNVBAMMGEdvbGRlbiBGcm9nIEdtYkggUm9vdCBDQTEj
MCEGCSqGSIb3DQEJARYUYWRtaW5AZ29sZGVuZnJvZy5jb20wggIiMA0GCSqGSIb3
DQEBAQUAA4ICDwAwggIKAoICAQCtuddaZrpWZ+nUuJpG+ohTquO3XZtq6d4U0E2o
iPeIiwm+WWLY49G+GNJb5aVrlrBojaykCAc2sU6NeUlpg3zuqrDqLcz7PAE4OdNi
OdrLBF1o9ZHrcITDZN304eAY5nbyHx5V6x/QoDVCi4g+5OVTA+tZjpcl4wRIpgkn
WznO73IKCJ6YckpLn1BsFrVCb2ehHYZLg7Js58FzMySIxBmtkuPeHQXL61DFHh3c
TFcMxqJjzh7EGsWRyXfbAaBGYnT+TZwzpLXXt8oBGpNXG8YBDrPdK0A+lzMnJ4nS
0rgHDSRF0brx+QYk/6CgM510uFzB7zytw9UTD3/5TvKlCUmTGGgI84DbJ3DEvjxb
giQnJXCUZKKYSHwrK79Y4Qn+lXu4Bu0ZTCJBje0GUVMTPAvBCeDvzSe0iRcVSNMJ
VM68d4kD1PpSY/zWfCz5hiOjHWuXinaoZ0JJqRF8kGbJsbDlDYDtVvh/Cd4aWN6Q
/2XLpszBsG5i8sdkS37nzkdlRwNEIZwsKfcXwdTOlDinR1LUG68LmzJAwfNE47xb
rZUsdGGfG+HSPsrqFFiLGe7Y4e2+a7vGdSY9qR9PAzyx0ijCCrYzZDIsb2dwjLct
Ux6a3LNV8cpfhKX+s6tfMldGufPI7byHT1Ybf0NtMS1d1RjD6IbqedXQdCKtaw68
kTX//wIDAQABo2MwYTAdBgNVHQ4EFgQU2EbQvBd1r/EADr2jCPMXsH7zEXEwHwYD
VR0jBBgwFoAU2EbQvBd1r/EADr2jCPMXsH7zEXEwDwYDVR0TAQH/BAUwAwEB/zAO
BgNVHQ8BAf8EBAMCAYYwDQYJKoZIhvcNAQENBQADggIBAAViCPieIronV+9asjZy
o5oSZSNWUkWRYdezjezsf49+fwT12iRgnkSEQeoj5caqcOfNm/eRpN4G7jhhCcxy
9RGF+GurIlZ4v0mChZbx1jcxqr9/3/Z2TqvHALyWngBYDv6pv1iWcd9a4+QL9kj1
Tlp8vUDIcHMtDQkEHnkhC+MnjyrdsdNE5wjlLljjFR2Qy5a6/kWwZ1JQVYof1J1E
zY6mU7YLMHOdjfmeci5i0vg8+9kGMsc/7Wm69L1BeqpDB3ZEAgmOtda2jwOevJ4s
ABmRoSThFp4DeMcxb62HW1zZCCpgzWv/33+pZdPvnZHSz7RGoxH4Ln7eBf3oo2PM
lu7wCsid3HUdgkRf2Og1RJIrFfEjb7jga1JbKX2Qo/FH3txzdUimKiDRv3ccFmEO
qjndUG6hP+7/EsI43oCPYOvZR+u5GdOkhYrDGZlvjXeJ1CpQxTR/EX+Vt7F8YG+i
2LkO7lhPLb+LzgPAxVPCcEMHruuUlE1BYxxzRMOW4X4kjHvJjZGISxa9lgTY3e0m
noQNQVBHKfzI2vGLwvcrFcCIrVxeEbj2dryfByyhZlrNPFbXyf7P4OSfk+fVh6Is
1IF1wksfLY/6gWvcmXB8JwmKFDa9s5NfzXnzP3VMrNUWXN3G8Eee6qzKKTDsJ70O
rgAx9j9a+dMLfe1vP5t6GQj5
-----END CERTIFICATE-----
10. Click Save at the bottom of the page.
11. Go to the Administration tab, then the Management sub-tab.
12. Scroll down to the bottom of the page and click Reboot Router.
13. Wait 2-5 minutes for the router to reboot and the connection to establish.

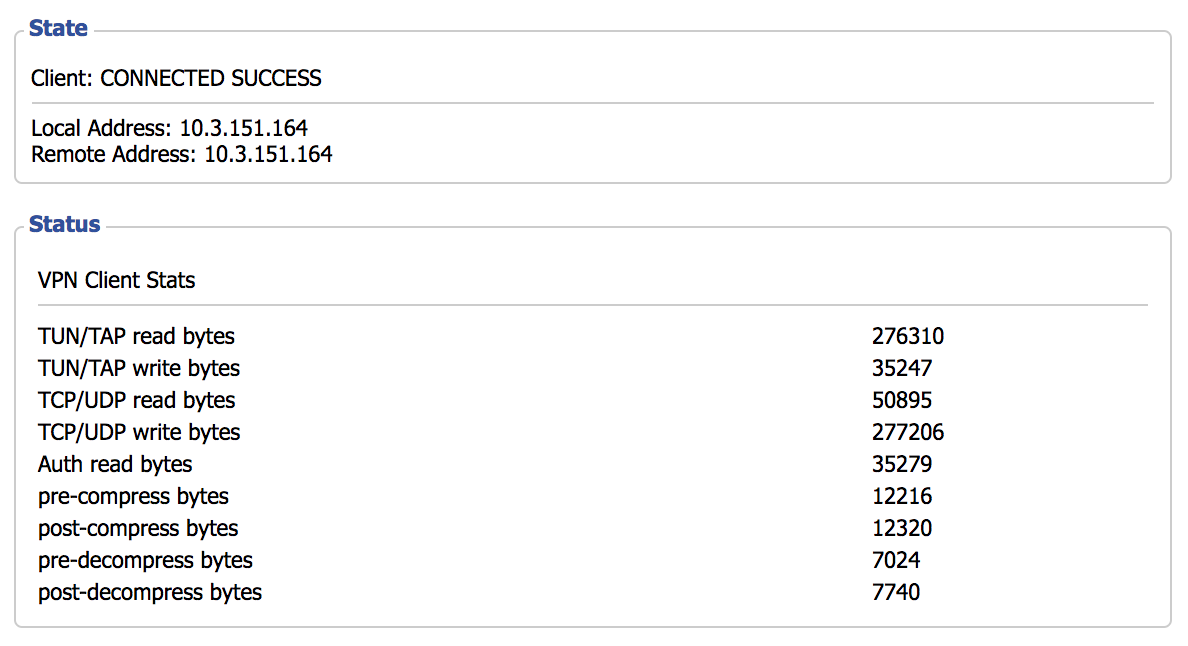

Log and connection information is visible in the Status tab, under the OpenVPN sub-tab.
14. Check your IP address here: What is my IP address?
15. Enjoy VyprVPN in your DD-WRT router!
If you need any further assistance, please contact our 24/7 Customer Success Team, who would be glad to assist.
